50-by-45-Foot Hangars

50-by-45-Foot DoorPrior to the new hangar construction, the airport had very little individual space to accommodate medium sized aircraft and smaller corporate aircraft. There was also a need for larger hangar space to accommodate those kit builders or general aviation aircraft owners who were looking for a bit of room to spread out. Because of this demand, the airport constructed seven larger rectangular units that are 50 feet wide by 45 feet deep with 16-foot door heights to accommodate a taller tail height. These hangars are large enough to house 1 larger aircraft or multiple smaller aircraft with enough room left to set up benches or store other various aircraft parts.

Because of the larger opening, an electric bifold door was installed that has 2 “walk-through” doors for access and is easily operated with the push of a button. The doors also have windows in the top portion to allow natural light to enter which provides a much brighter atmosphere in the hangar. Once closed, the large bi-fold doors have easy manual latches to pull the door tight to keep out the weather.

These hangars come with a full heated restroom (toilet, shower, sink), individual hot water tank, large tub sink with hot and cold water, two large heaters with timers, and 220V power in three different receptacles with 100 amps of individually metered power. There are also six 110V power receptacles which can be used for everyday household plug-in items. The 50-foot rectangle hangars were constructed to meet an H-5 occupancy rating (allows for more advanced repairs and additional maintenance on aircraft) and are sprinkled for additional safety.
50-by-45-Foot Bathroom
50-by-45-Foot Hot Water Tank
50-by-45-Foot Power Receptacle
50-by-45-Foot Electrical Panel

Size
50-Foot Rectangular Hangars
Square Feet 2250
A 50 Feet
B 45 Feet
Height 16 Feet
Number of Units 7

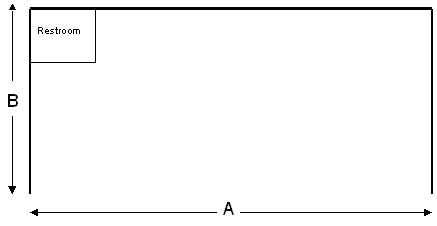

50-by-45-Foot Schematic
Cost
50-foot rectangle hangar units are located in the newer west ramp area. The monthly rate for these units is $1,112.93 (including taxes) and it will be the tenant’s responsibility to pay all electricity costs for these hangars.
